multimode lc lc connector om4 50-125 duplex jumper lszh jacket 1m fiber optic patch cord

Product Categories
Sunwise Optical Communication Equipment Co.,Ltd
Contact Now

multimode lc lc connector om4 50-125 duplex jumper lszh jacket 1m fiber optic patch cord

  • 1
  • 2
  • 3

Brand Name : SUNWISE

Model Number : LCLC4DOM3

Certification : CE RoHS FCC,CE/TUV/ISO9001

Place of Origin : CHINA

Application : FTTH FTTB FTTX Network,Telecom/network

Color : blue

Fiber type : G657A2,G652D,SM/MM/OM3

Connector type : DLC/PC,SC; FC; LC; ST; MTRJ; MU; E2000; MPO; SMA; FDDI; DIN4; D4

Product name : Single Mode Simplex/Duplex LC-LC Fiber Jumper/Optic patch cable

Insertion loss : < 0.2dB,PC/UPC/APC< 0.2dB

Return loss : UPC>55dB,>=35 dB

Length : Customized

Wavelength : 1310nm/1550nm/850nm/1300nm

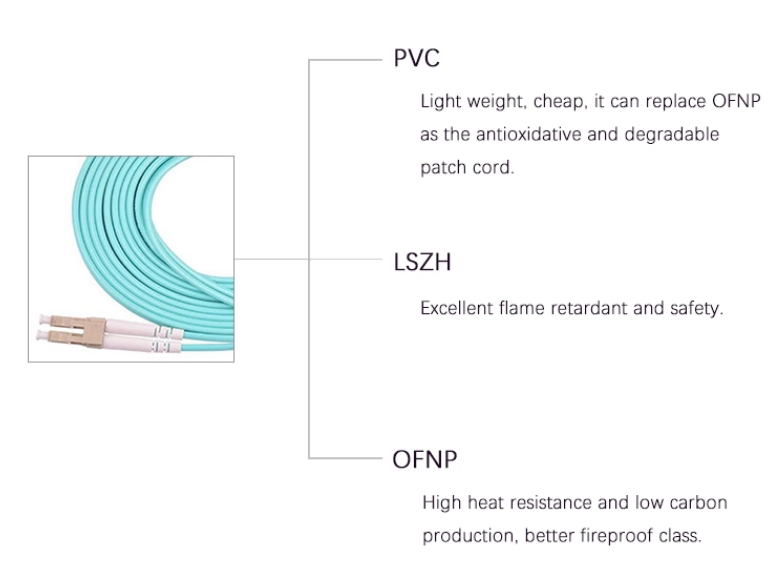

Material : LSZH,PVC

Cable length : 0.5/1.0/2.0/3.0/As Customer Requested

Connector : SC/LC/FC/ST,MPO/MTP

Type : Om3 Fiber optic patch cord

Operating temperature : -40 ~+75 Degree

Fiber counts : duplex,50/125um

Fiber mode : SM/MM,Singlemode or multimode

Contact Now

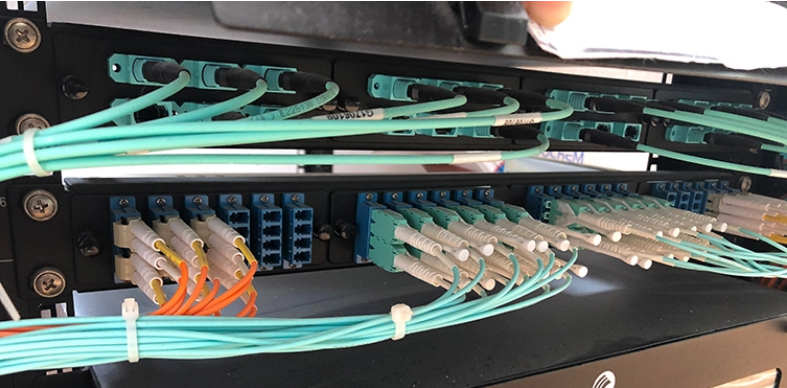

A patch cord is a fiber optic cable used to attach one device to another for signal routing.The OM4 50/125 multimode fiber
opticcables compliant to ISO/IEC 11801 standards. They are used for 10Gbps networks to meet the requirement of continuous growing of high data rates.

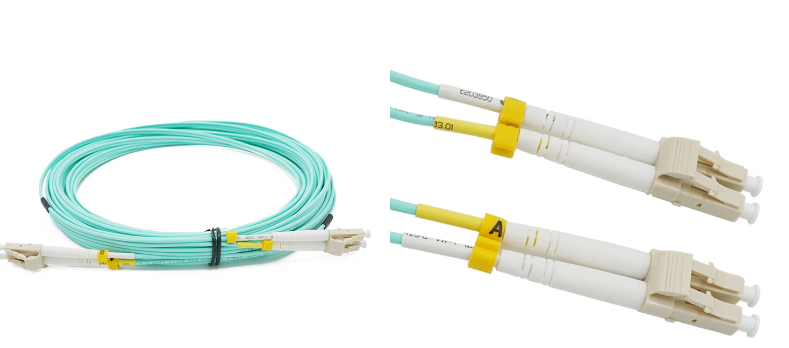

multimode lc lc connector om4 50-125 duplex jumper lszh jacket 1m fiber optic patch cord



*Low insertion loss and high return loss.
*Good exchange ability.
*Support 10 Gigabit data transmitting rates.
*MM cables type.

multimode lc lc connector om4 50-125 duplex jumper lszh jacket 1m fiber optic patch cord
Parameter
Unit
Standard & Requirement
Insertion Loss
dB
≤ 0.20
Changeability
dB
≤ 0.20
Radius of Curvature
nm
10 ≤ r ≤25
Curvature Eccentricity
um
<50
Fiber Core Undercut
nm
<50
Insertion Loss Change
dB
< 0.1
Return Loss Change
dB
< 5
Insert & Pull Out (Max.)
kg
2
Insert and Pull Frequency
time
> 1000
Operating Temperature
°C
-40~+85
multimode lc lc connector om4 50-125 duplex jumper lszh jacket 1m fiber optic patch cordmultimode lc lc connector om4 50-125 duplex jumper lszh jacket 1m fiber optic patch cord
*FC, LC, SC, MU, ST, MTRJ, E2000, MPO…optional.
*Polishing: PC, UPC and APC.
*Meets IEC standard.
