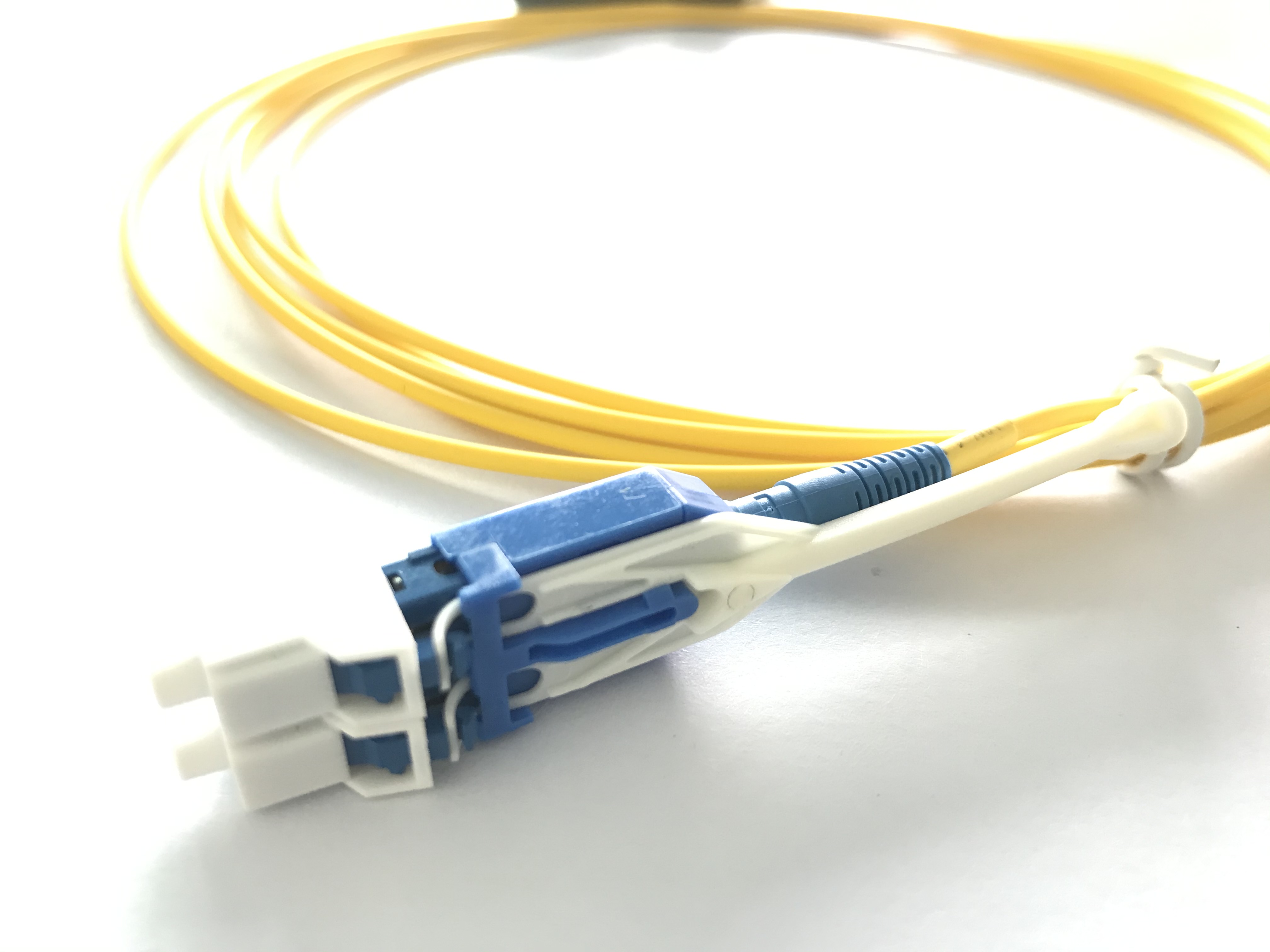

LC uniboot Push-pull XD To LC uniboot Push-pull XD Fiber Optic Patch Cord Single Mode Fiber Jumpers LSZH Material
1. Product Introduction
Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.
The SC fiber optic patch cord is one of the earliest type and one of the most commonly used fiber optic cable, it is convenient to use and cost saving, It is the most cheapest type fiber optic patch cable. SC fiber patch is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.
2. Features
♦ Compliant with international standard such as ANSI,Bellcore, TLA/EIA, IEC,also according with the industrial standards of Telecom in China
♦ Realize the activelink of optic fiber transmission
♦ Low insertion loss and high return loss
♦ Excellent repeatability and interchangeability
The 9/125μm single mode fiber optic cable is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
| Connector Type | LC to LC | Polish Type | UPC to UPC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Fiber Grade | G.652.D | Minimum Bend Radius | 30mm |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Duplex | Cable Diameter | 3.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
What is your quality control for your fiber optic product ?
1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
FAQ
1. Are you the real factory?
Yes,we are the real factory.
2. What is your main products?
Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.SC/LC/F adapters,attenuators.
Outdoor fiber optic cables; indoor fiber optic cables.
3. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers
